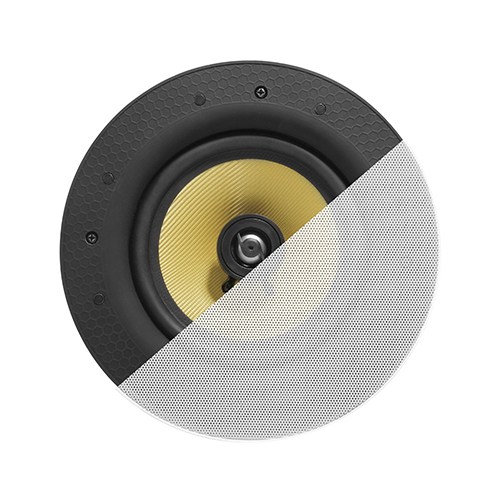

This 2-way ceiling speaker with a robust 8” Kevlar® woven cone woofer and a 1″ titanium dome tweeter in a co-axial arrangement. The Kevlar® woven cone ensures high-quality, long-lasting sound that will bring movie action and music vocals to life. The 1 inch silk dome tweeter offers the smoothest high frequency response .The high-grade rubber edge allows for true audio accuracy and quality that will last. The DynaScope DS-8 is designed for optimal performance in a wide variety of home entertainment applications, from providing relaxed background music to a high impact home theater system. The sophisticated crossover works to deliver deep bass and exceptional top-end frequency response.

Efficient and quick installation using improved swing-out dog legs and a frameless design. Micro edge magnetic grills provide for an unobtrusive appearance while allowing these speakers to fit beautifully in any interior design.

FEATURES:

Frameless design provides reduced visibility for a clean and built-in look
Butyl rubber surround gives the speaker a noble appearance and presents high-end performance
Dog leg mounting system offers fast and easy installation
Environment equalizer (±3dB) for fine tuning to the installation environment
Quality crossover for improved sound quality and lower distortion
Titanium dome tweeter delivers pristine highs
Kevlar® woven cone woofer delivers deep clear bass




DynaScope DS-8 speaker Specification

Weight: 2.04KG (4.5lbs)
Dimension: Ø277mm(10.9″)*105mm(4.1″) (Ø277mm(10.9″)*105mm(4.1″))
Cutout Size: Ø258mm(10.0″) (Ø258mm(10.0″))
Woofer Type: Kevlar Woven Cone
Woofer Size: 8″
Woofer Quantity: 1
Tweeter Type: Titanium Dome
Tweeter Size: 0.75″
Tweeter Quantity: 1
Frequency Response (±3db): 50Hz-20K Hz
Sensitivity: 90dB
RMS Power: 80W
Nominal Impedance:
Magnetic: Yes
