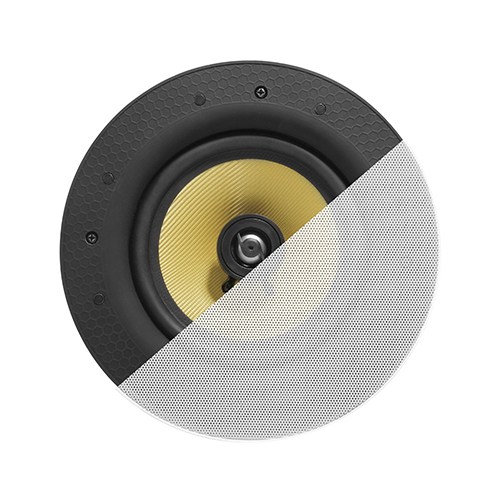

7This 2-way ceiling speaker with a robust 8” Kevlar® woven cone woofer and a 1″ titanium dome tweeter in a co-axial arrangement. The Kevlar® woven cone ensures high-quality, long-lasting sound that will bring movie action and music vocals to life. The 1 inch silk dome tweeter offers the smoothest high frequency response .The high-grade rubber edge allows for true audio accuracy and quality that will last. The DynaScope DS-8 is designed for optimal performance in a wide variety of home entertainment applications, from providing relaxed background music to a high impact home theater system. The sophisticated crossover works to deliver deep bass and exceptional top-end frequency response.
Efficient and quick installation using improved swing-out dog legs and a frameless design. Micro edge magnetic grills provide for an unobtrusive appearance while allowing these speakers to fit beautifully in any interior design.
FEATURES:
Frameless design provides reduced visibility for a clean and built-in look
Butyl rubber surround gives the speaker a noble appearance and presents high-end performance
Dog leg mounting system offers fast and easy installation
Environment equalizer (±3dB) for fine tuning to the installation environment
Quality crossover for improved sound quality and lower distortion
Titanium dome tweeter delivers pristine highs
Kevlar® woven cone woofer delivers deep clear bass
DynaScope DS-8 speaker Specification
| Weight: | 2.04KG (4.5lbs) |
| Cutout Size: | Ø258mm(10.0") (Ø258mm(10.0")) |
| Dimensions | Ø277mm(10.9")*105mm(4.1") (Ø277mm(10.9")*105mm(4.1")) |
| Woofer Type: | Kevlar Woven Cone |
| Woofer Size: | 8" |
| Woofer Quantity: | 1 |
| Tweeter Type: | Titanium Dome |
| Tweeter Size: | 0.75" |
| Tweeter Quantity: | 1 |
| Frequency Response (±3db): | 50Hz-20K Hz |
| Sensitivity: | 90dB |
| RMS Power: | 80W |
| Nominal Impedance: | 8Ω |
| Magnetic: | Yes |
