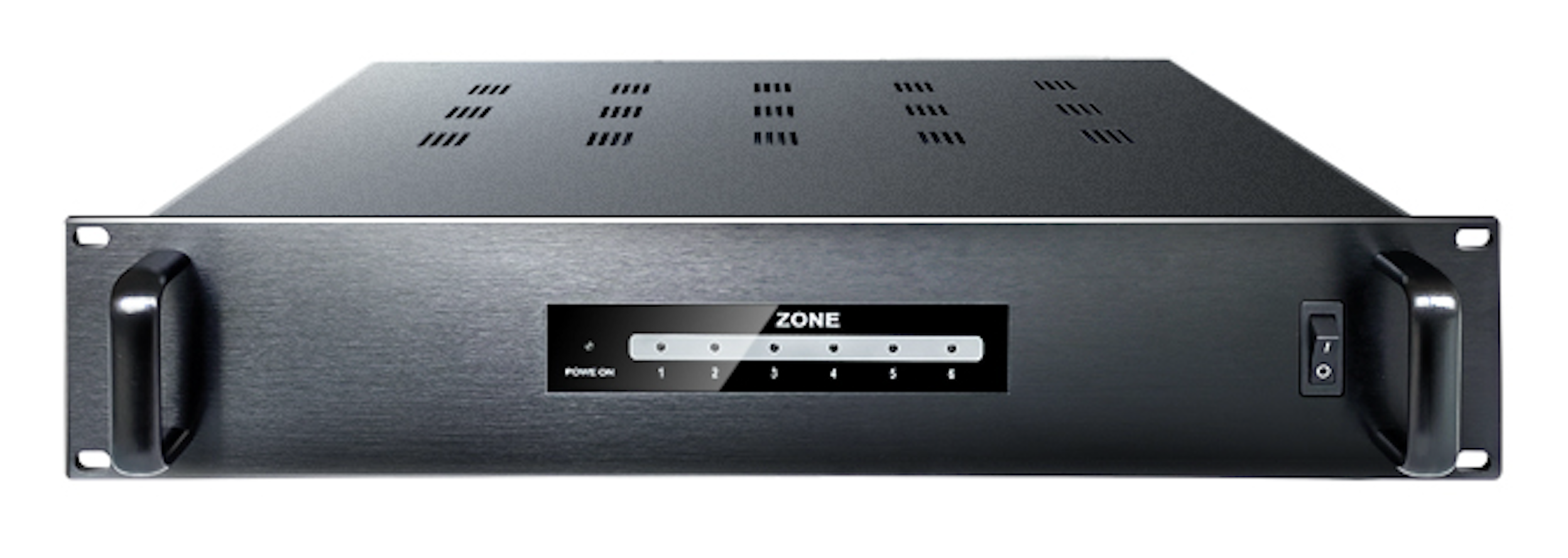

airScope AMP8-12 is a multizone (4-6 zone) amplifier,
· Advanced ClassD output circuit.
· Advanced switching mode power supply.
· Heat dissipation of temperature controlled continuous variable speed fan.
· Comprehensive protection circuit (thermal protection, clipping limiter,short circuit protection, etc.)
· Lightweight and compact.
airScope AMP8-12 Specification
| Frequency Response: | 20 Hz-20 KHz |
| RMS Power/MAX Power: | 80W per channel |
| Briged Power Output: | 160W per channel |
| SNR: | 90 dB |
| Output Chanel: | 8 in model AMP8 12 in model AMP12 |
| Efficiency: | 80% (all Chanel full power) |

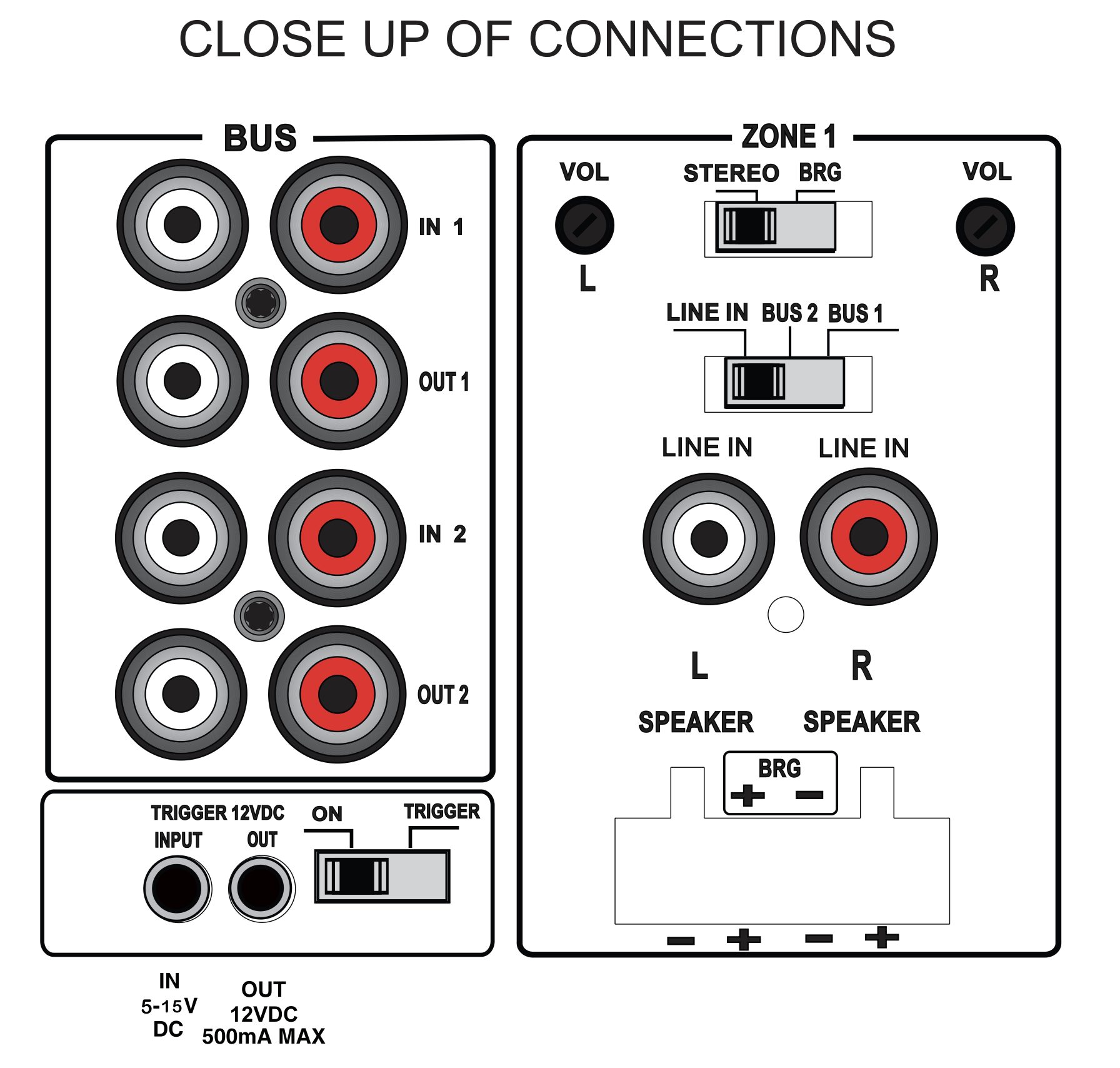

| Audio In: | Bus 1,Bus 2, Line In for each zone |
| Power Input: | 100-240V~50/60Hz |
| Class: | Digital amplifier - Class-D |
| Control: | 12 V Trigger |
| Weight: | (AMP8- 7 kg, AMP12-9 kg) |

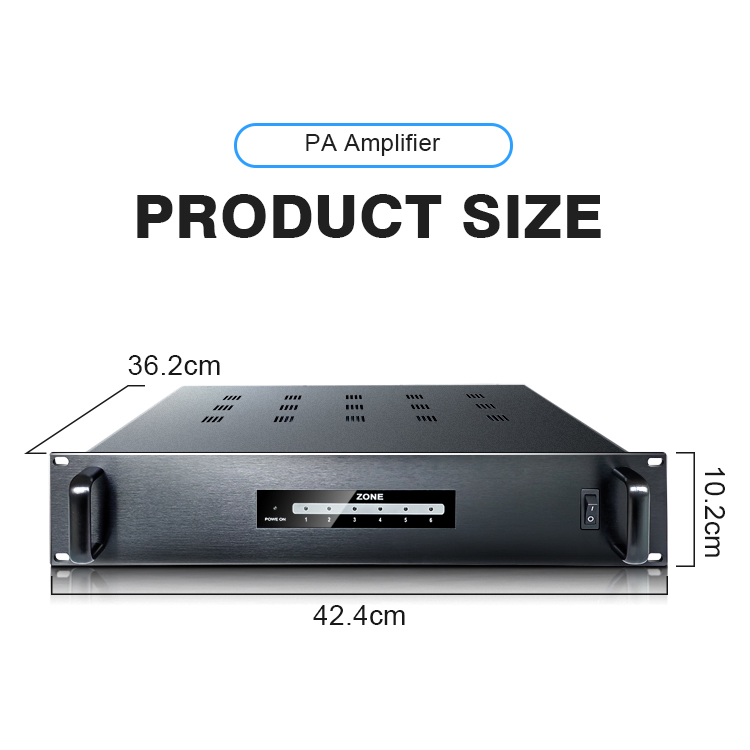

| Dimensions: | 425x362x102mm |
